Épandeuses tractées et saleuses saumureuses

ÉPANDEURS À SABLE TRACTÉS ET SALEUSES SAUMUREUSES

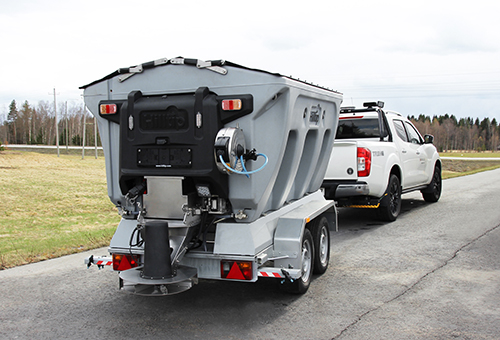

Les épandeurs à sable tractés pour remorque Hilltip IceStriker™ présentent une capacité allant de 380 à 2 100 litres. Également compatibles avec le sel, ils constituent des épandeuses polyvalentes pour les remorques. En outre, nos saleuses saumureuses SprayStriker™ gèrent parfaitement l’application de saumure liquide.

Les épandeuses tractées peuvent être attelées à tout type de pick-up, de SUV ou de voiture, ce qui élargit les possibilités d’utilisation.

Les châssis robustes comprennent de l’acier galvanisé à chaud avec revêtement par poudre, offrant la meilleure protection du marché contre la corrosion.

Trailer salt spreaders,Bogserbar spridare,Hinattava Hiekoitin, Salzstreuer anhänger, Saleuses, Posypywarka

HTRACK™ TRACKING SYSTEM

Hilltip trailer spreaders/ sprayers are compatible with our HTrack™ tracking software. You can track and manage all of your spreading devices and snowplows online on your computer, tablet or smartphone. The program shows treatment route and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location and material used can be summarized and generated as PDF reports.

You can reduce the salt usage with up to 30% with the optional liquid pre-wet system, and by 75% when using salt brine solution as de-icing method! This is direct savings for you and the environment.

Show brochure

Request a quote

FUNCTIONS AND ACCESSORIES

Pickup Sand & Salt spreader, Combi Salt Spreader, Saltspridare, Lautashiekoitin, Salzstreuer Winterdienst, Saleuses, Elektryczna Posypywarka

COLOR SCREEN CONTROLLER

The controller lets you customize your spreading session according to your current situation. Automatic GPS speed control adjusts the amount of spreading material (g/m² or ml/m²) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to an USB memory, allowing you to generate spreading reports. The controller also makes it easy to turn on functions, like vibrator, beacon and work light, from inside the cabin.

TOWABLE ICESTRIKER™

VIBRATOR

Vibrator prevents bridging and de-icing material from clogging by shaking the inverted Vee.

INVERTED V

Inverted-V helps reduce heavy start-up loads on the auger. All in stainless steel.

AUGER

The 65 mm stainless steel auger gives you an even flow of material to the spinner.

TARP MECHANISM

Two-piece tarp mechanism, prevents spill off into truck bed when filling the spreader.

TOP SCREEN

Top screen prevents rocks and big material chunks from getting into the hopper.

ONLINE DATA-LOGGING

Online data-logging transfer via controller

ALSO INCLUDES

Built-in tie-down loops for strapping unit to truck
Hopper body includes molded alternate license plate area
The motor is mounted inside a sealed weather-resistant enclosure, and requires no pulleys, sprockets, belts or chains
Includes an accessory wire for optional work light, beacon light and rear camera that can be activated from the standard controller

TOWABLE SPRAYSTRIKER™

SPRAYBAR

2 m spraybar with totally 14 nozzles.

DOUBLE SPRAY NOZZLES

Including nozzles on the end of the boom for extended spray width.

SPEEDCONTROL

GPS-speedcontrol adjusts the liquid flow (ml/m²) according to your vehicle speed.

SUPPORT LEGS

ONLINE DATA-LOGGING

Online data-logging transfer via controller

ALSO INCLUDED

12 V Twin pumps
20ml/m² output at max speed 25km/h
2″ camlock inlet for filling sprayer
Additional tank for rinsing / cleaning the spray system with anti-freeze liquid after each use
Built-in tie-down loops for strapping unit to truck
Includes an accessory wire for optional beacon light that can be activated from the standard controller

TOWABLE ICESTRIKER™

PRE-WET SALT KIT

Pre-wet salt liquid kit, nozzles, pump with built-in tanks in spreader construction

SPRAY BAR

2m wide spraybar with 2-5m spraying width

MANUAL HOSE REEL

12m hose reel for spraying hard-to-reach areas with saltsolutions in winter, and for green area maintenance in the summer

BLADDER TANK

Bladder tank stores additional liquid inside hopper

BEACON WARNING LIGHT

To increase visibility and keep you safe in the traffic

LED WORK LIGHT

Adjustable work light at the rear of the spreader improves visibility

LIQUID LEVEL INDICATOR

Built-in salt liquid level check for optional liquid system, which also includes an electronic sensor.

OTHER OPTIONS

License plate kit

TOWABLE SPRAYSTRIKER™

MANUAL DE-ICING HOSE REEL

Manual spray nozzle with 12m hose reel for hard-to-reach areas

SOLENIODS ON END NOZZLES

Electric solenoids on side nozzles (controlled from cabin), working width 2-5m

BEACON WARNING LIGHT

To increase visibility and keep you safe in the traffic

TECHNICAL SPECIFICATIONS

Spreader specifications and dimensions

TOWABLE ICESTRIKER™ 380-900 SPECIFICATIONS

MODEL	380	550	900
Capacité, niveau d’eau	350 l	500 l	850 l
Capacité, arrondie	380 l	630 l	900 l
Poids de l'épandeur (vide)	120 kg	145 kg	225 kg
Construction de la trémie	Acier inoxydable	Poly	Poly
Largeur d’épandage	1-8 m (La largeur d’épandage peut varier en fonction du des matériaux)
Ø de l’assiette d’épandage	390 mm	390 mm	390 mm
Ø de la vis	65 mm	65 mm	115 mm
Matériau	Sel, sable, granulat/mélange (max 8 mm Ø)
Trailer type	Single axle	Single axle/ Dual axle with brakes	Dual axle with brakes
Total trailer length (including spinner)	2550 mm	2550/ 4500 mm	3940 mm
Total trailer width	1600 mm	1700 mm	1450 mm
Height	1500 mm	1650 mm	1900 mm
Max weight (loaded)	750 kg	750kg /2700 kg	2700 kg

TOWABLE ICESTRIKER™ 1150-2100 SPECIFICATIONS

MODEL	1150	1600	2100
Trailer type	Dual axle with brakes	Dual axle with brakes	Dual axle with brakes
Total trailer length (including spinner)	3940 mm	4500 mm	4500 mm
Total trailer width	1450 mm	1700 mm	1700 mm
Height	2003 mm	2000 mm	2140 mm
Max weight (loaded)	2700 kg	3500 kg	3500 kg

TOWABLE SPRAYSTRIKER™ SPECIFICATIONS

MODEL	500	1000	1500	2000
Trailer type	Single axle	Dual axle with brakes	Dual axle with brakes	Dual axle with brakes
Total trailer length (including spraybar)	2500 mm	4350 mm	4350 mm	4350 mm
Total trailer width	1600 mm	1700 mm	1700 mm	1700 mm
Height	1500 mm	1500 mm	1500 mm	1500 mm
Weight (loaded)	max 750 kg	max 2700 kg	max 2700 kg	max 2700 kg

OPTIONAL LIQUID SYSTEM SAVINGS CALCULATOR

See how much you can save by reducing material costs with a liquid system

Current de-icing method

Dry salt
Pre-Wet

Compare with

Pre-Wet
Brine only

Salt consumption

kg / year *

Salt price

€ / kg *

You can save in material costs annually

0 €

* Calculations based on the following application rates: Dry salt 30g/m², Pre-Wet 17g/m², Brine 35ml/m². With a Pre-Wet system the application rate is significantly lower, as the pre-wetted salt bonds to the ground and immediately start breaking up the ice.
